B-24V
Hydraulic Barrier step B-24V
Description

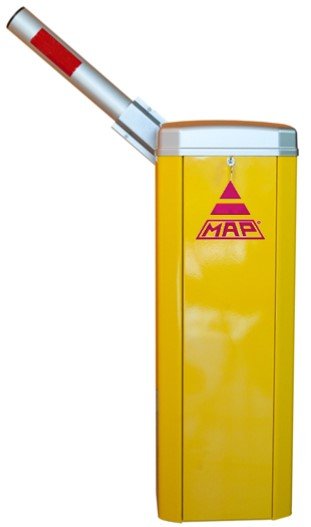

Electromechanical Passage Barrier B-24V
Heavy-duty use. IRREVERSIBLE
B-24V 3: motor in 24vdc. 3m pole.
B-24V 6: motor in 24vdc. 6m pole.
- -Cast iron and steel gears.
- -Mechanical parts lubricated with lithium grease to avoid corrosive factors in the environment.
- -Mechanical limit switch on opening and closing.
- -Obstacle detection and direction reversal. (EN12453)
- -Deceleration speed. (EN12453)
- -Emergency unlocking for maneuver facilitation.
- -Pole mounting bracket included.
B-24 3, B-24 6.
| B-24 3 | B-24 6 | |
| Boom Length | 3 meters | 6 meters |
| Unlocking Type | Mechanical | Mechanical |
| Motor Power Supply | 24V | 24V |
| Motor Absorption | 2.5 A | 2.5 A |
| Power | 60 W | 60 W |
| Protection Rating | IP-44 | IP-44 |
| Operating Temperature | -20ºC / +55ºC | -20ºC / +55ºC |
| Opening Time | 5 s | 10 s |
| Weight | 45 Kg | 45 Kg |

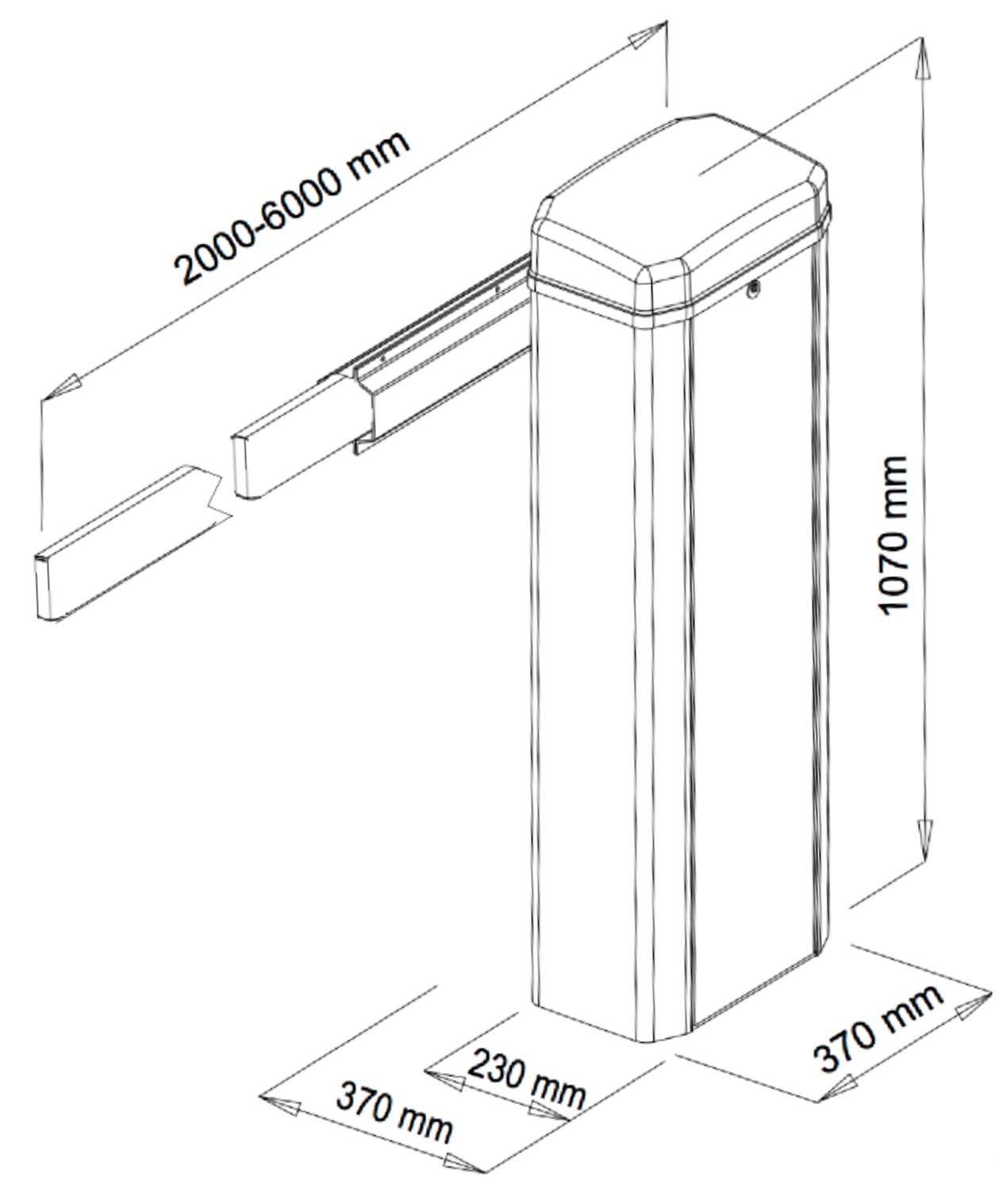

| Dimensions | 370 X 230 X H1070mm | 370 X 230 X H1070mm |
B-24V Electromechanical Barrier
Intensive Use. IRREVERSIBLE
B-24V 3: motor at 24vdc. Boom length of 3 meters.
B-24V 6: motor at 24vdc. Boom length of 6 meters.
RECOMMENDED KITS
STANDARD KIT:
‐ STANDARD KIT: 1 B-24V (INCORPORATED CONTROL PANEL) + CHOSEN BOOM (3 meters or 6 meters) + REM 1 or (RECEIVER CARD + ADAPTER) + 1 TE 2 + 2 CF 10 E or 2 CFEVE.
ACCESSORIES:
PAA (mobile BOOM support), PAB (fixed BOOM support), RAB (2mtr rack), REM 1 255, SEMAPHORE SEM 1-2, FLASH LAMP LO1E 220, REMOTE CONTROL TE2, TE3, TE4, GO2, PHOTOCELLS CF 10 E, CF 10.
