PI 25 I
Pylons traffic restriction PI 25 I
Description
Automatic Access Control and Traffic Restriction Mechanism.
Stainless steel with sandblasted finish and reflective band, recommended for modernist structure and design areas, maritime or humid areas, leisure and sports.
Minimum embedding depth.
The smallest on the market in terms of its travel (420mm).

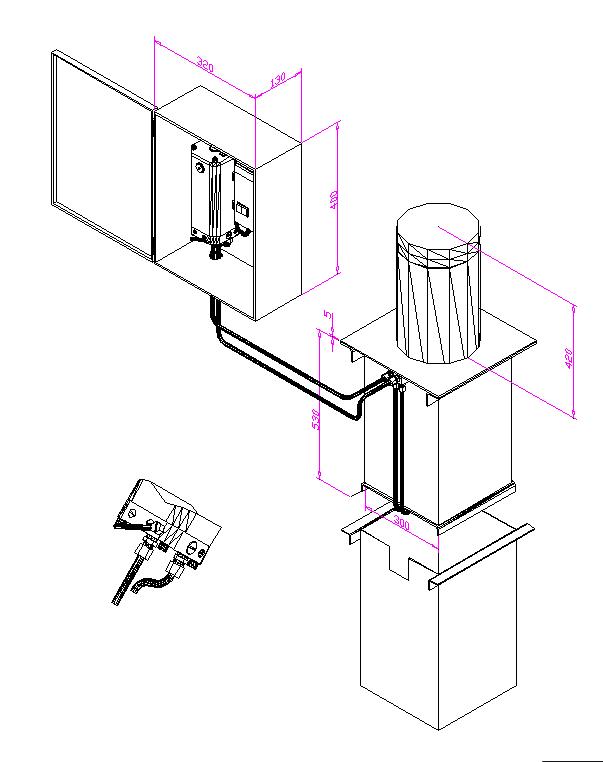

External cabinet and hidden bollard. Motor pump and control panel in external cabinet (easy maintenance).
Hydraulic connection with the retractable bollard through flexible rubber tubes with reinforcement of mesh of different diameters (reduces assembly work). Control panel suitable for adapting accessories and any type of operation (receiver card, remote control, buttons, …) security systems (photocells, magnetic detector, …), signaling systems (flash lamp, traffic light, …) on request.
Stainless steel exterior with non-slip surface (for pedestrian access safety).
Possibility of a cast model in matte black finish, in case the architectural environment requires it.
No electrical components in the bollard. (Avoids faults due to water or moisture)
Manual unlocking from the external cabinet (for emergencies)
UPS available to perform this automatic action. NOT INCLUDED.
PI 25 I | |
Diameter | 244 mm |
Stroke | 420 mm |
Adjustable force | 0 to 560 Kg |
Lift time | 16 Sec. |
Descent time | 10 Sec. |
Power supply | 230V,50Hz / 120V,60Hz |
Consumption | 1.1 A |
Protection degree | IP 55 |
Flow rate | 2.5 L/m |
Automatic access control and traffic restriction mechanism.
Stainless steel with sandblasted finish and reflective band, recommended for modernist structural and design areas, maritime or humid areas, leisure and sports.
Minimum embedding depth.
The smallest on the market in terms of its stroke (420mm).
KITS RECOMMENDED
STANDARD KIT:
‐ STANDARD KIT: 1 PI 25 I + 2 ltrs. MAP OIL + 1 CRF MINI + 1 TR255 MINI + 1 TE 3 + MDAE
ACCESSORIES:
MDA‐E, MAP OIL, TRAFFIC LIGHT SEM 1‐2, FLASHING LAMP LO1E 220, REMOTE CONTROLS TE3, TE4 GO2.
