C 30
Rolling door system C 30
Description

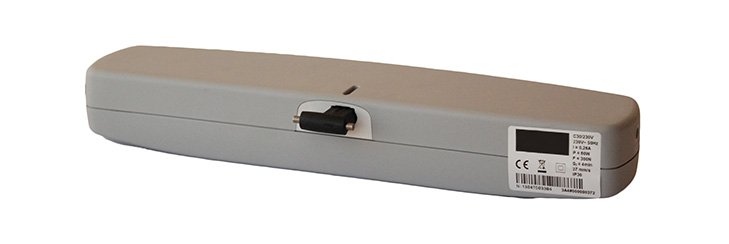

Mechanism to automate smoke exhausts C 30.
Smoke exhaust actuator 300N, 230V, 50Hz / 120V, 60Hz with chain
| C 30 | |
| Power Supply Voltage | 230V, 50Hz / 120V, 60Hz |
| Consumption | 0.26A |
| Power Absorbed under Load | 60W |
| Max Traction Load | 300N |
| Max Empty Load | 300N |
| Empty Translation Speed | 27mm/s |
| Empty Travel Duration | 14s |
| Operating Temperature | -5 +50ºC |
| Protection Degree | IP 30 |
| Gross Weight | 1.5 KG |
| Chain Length | 200mm÷380mm |
Mechanism for automating smoke exhausts C 30.
Smoke exhaust actuator 300N 230V, 50Hz / 120V, 60Hz with chain
RECOMMENDED KITS
STANDARD KIT:
– STANDARD KIT: 1 C 30.
ACCESSORIES:
Consult
