MT80
Rolling door system MT80
Description

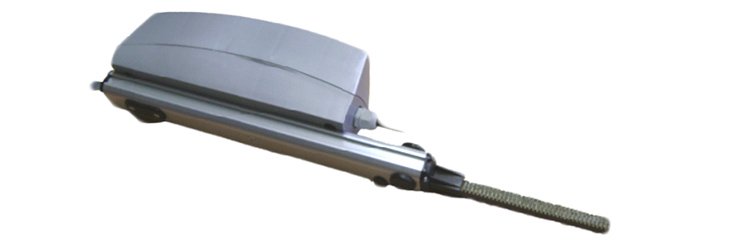

Mechanism to automate smoke exhausts MT 80.
Smoke exhaust motor with rack
| MT80 | |
| Power supply voltage | 230V, 50Hz / 120V, 60Hz |
| Maximum load | 800N |
| Racks | 1000mm. Other sizes available upon request. |
| Intensity | 0.3A |
| Speed | 14mm/s |
| Continuous operation | s² 4min |
| Operating temperature | -5 +55ºC |
| IP Protection | IP 55 |
| Parallel connection | Yes |
| Limit switch | Encoder |
Mechanism for automating MT 80 smoke outlets.
Smoke outlet motor with rack
RECOMMENDED KITS
STANDARD KIT:
‐ STANDARD KIT: 1 MT 80.
ACCESSORIES:
PHOTOCELLS CF 10 E, CF 10.
