MTCH
Sectional doors system MTCH
Description
Motor to automate sectional and tilt-up doors.
Heavy-duty use.
- MTCH 800 for doors up to 10 m².
- MTCH 1000 for doors up to 15 m².
- Soft start and stop.
- Minimizes motor effort on the door.
- Self-learning force control for both opening and closing.
- Over-effort on closing causes automatic reversal of more than 150mm.
- Low voltage protection, the system will not perform any opening or closing action to protect the control panel.
- Transmitter system to prevent overlapping or pirate codes.
- Safety lock.
- Automatic closing.
SPECIAL CONNECTION FUNCTIONS (OPTIONAL)
Flashlight, safety contact, alternate button, safety photocells, external batteries.
| MTCH 800 | MTCH 1000 | |
| Motor power supply | 230V, 50Hz / 120V, 60Hz | 230V, 50Hz / 120V, 60Hz |
| Motor voltage | 24 VDC | 24 VDC |
| Light bulb | 25W / 230V | 25W / 230V |
| Protection class | IP 20 | IP 20 |
| Operating temperature | -30 +60 ºC | -30 +60 ºC |
| Speed ≈ | 12 cm/s | 12 cm/s |
| Remote frequency | 433.92 MHz | 433.92 MHz |
| Tractive force | 800 N | 1000 N |
| Max. number of remotes | 20 | 20 |
| Transmission | Chain | Chain |
| Adjustable automatic closing time | 0÷100 sec | 0÷100 sec |
| Courtesy light time | 3 min. | 3 min. |
| Max. lifting height | 2.5 m. | 3.3 m. |
| Door width | ≈4 m. | 4.5 m. |

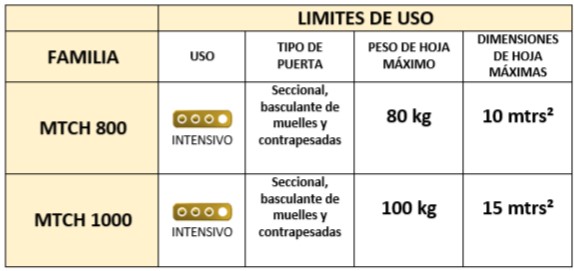

| Max. door m² | 10 m². | 15 m². |
| Guide | 3 and 4 m. | 3 and 4 m. |
Motor for automating sectional and tilt doors.
Intensive use
- MTCH 800 for doors up to 10 m².
- MTCH 1000 for doors up to 15 m².
- Soft start and stop.
RECOMMENDED KITS
STANDARD KIT:
‐ STANDARD KIT: 1 MTCH MODEL TO CHOOSE (INCORPORATED PANEL AND RECEIVER) + GUIDE TO CHOOSE (3 mtrs. or 4 mtrs.) + 2 MTCH TRANSMITTERS (INCLUDED) + 2 CF 10 E or 2 CF-EVE.
ACCESSORIES
PHOTOCELLS CF 10 E, CF 10.
