TECH CC
Sectional doors system TECH CC
Description
Mechanism to automate sectional, tilt-up, and counterweight doors.
Heavy-duty use.
TECH CC for doors up to 120Kg
- Chain or belt drive.
- Easy installation.
- Soft stop on closing and opening.
- Allows unlocking from the outside.
- Anti-crush safety system.
- Easy and secure unlocking from the inside.
- Due to its high power, it allows automation of large doors.
- Aluminum guide for easy fixing and joining (length 3m or 4m.)
- THE GUIDE CAN BE MADE TO MEASURE.
- Nylon sliders with fiberglass.
- Steel drive pinion with key to prevent slipping.
- Steel drive pivot to prevent breakage.
- State-of-the-art control panel (multiple features).
- Encoder (hall) limit switches.
- Automatic closing.
| TECH CC | |
| Power Supply | 230V, 50Hz / 120V, 60Hz |
| Motor Power Supply | 24 VDC |
| Motor Power | 73 W |
| Nominal Torque | 12.5 Nm. |
| Current | 5A |
| Tractive/Thrust Force | 1200 N |
| ÷Speed | 0.10 m/seg |
| Duty Cycle | 100% Intensive |
| Protection | IP 40 |
| End of Stroke | Encoder |
| Anti-Crushing | Yes |
| Operating Temperature | -20º +70º C |
| Guide Stroke 3000 mm. | 2500 mm. |
| Guide Stroke 4000 mm. | 3500 mm. |
| Weight with 3000 mm. chain guide | 13 Kg. |
| Weight with 4000 mm. chain guide | 14 Kg. |
| Weight with 3000 mm. belt guide | 10.5 Kg. |
| Weight with 4000 mm. belt guide | 13 Kg. |
Mechanism for automating sectional doors, spring and counterweight tilt doors.
Intensive use.

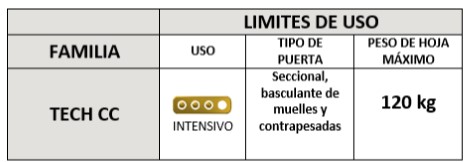

TECH CC for doors up to 120Kg
- Chain or belt drive.
- Easy installation.
- …
KITS RECOMMENDED
STANDARD KIT:
‐ STANDARD KIT: 1 TECH CC (INTEGRATED BOARD AND CARD) + RAIL TO CHOOSE (CHAIN 3 mtrs. or 4 mtrs. / BELT 3 mtrs. or 4 mtrs) + 1 TE 2 + 2 CF 10 E or 2 CF‐EVE.
ACCESSORIES
MS 60, SEMAPHORE SEM 1‐2, FLASHING LAMP LO1E 220, REMOTE CONTROL TE2, TE3, TE4, GO2, PHOTOCALLS CF 10 E, CF 10.
