BAS MEC CC
Up-and-over doors systems BAS MEC CC
Description
Mechanism to automate tilt doors with chain drive.
INTENSIVE USE
- Easy installation, lateral operation

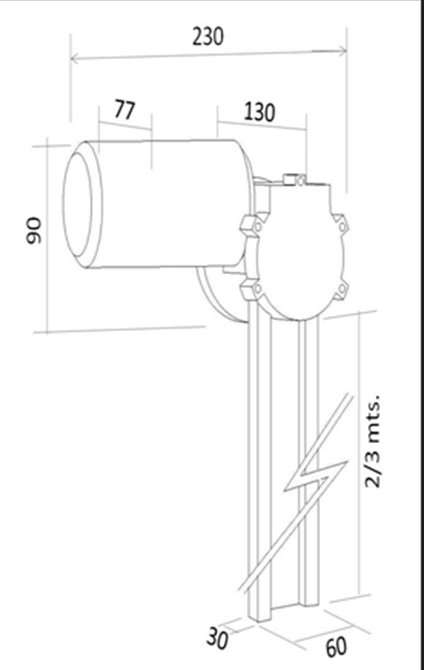

- Standard guides of 2, 2.5m, and 3m, fully assembled and ready for
- installation. (CONSULT FOR OTHER MEASUREMENTS)
- Steel guides 60×30
- Chain drive
- Tensioner with ball bearing
- Solid guitar Ø 16
- Allows unlocking from the inside by loosening the puller
- State-of-the-art control panel. R433 receiver for 255 integrated codes.
- Anti-crush safety system
- Soft stop in closing and opening
- End switches by encoder (hall)
- Intensive service
- Automatic closing
- Allows for battery charger adaptation
- High reliability due to the strength of the drive unit
- Adapter for plug-in receiver cards (433 or 868 Mz). (CARDS NOT INCLUDED)
| BAS MEC CC | |
| Power supply | 230V, 50Hz AC |
| Intensity | 5 A |
| Transformer | 80 VA |
| Motor power supply | 24V DC |
| Service | ED 90/10 |
| Speed | 115 mm/sec. |
| Protection | IP-30 |
| Operating temperature | -15°C to +70°C |
| Accessories power supply | 24V DC |
Mechanism for automating swing doors with chain drive.
INTENSIVE USE
- Easy assembly, lateral operation
- Standard guides of 2, 2.5m, and 3m, fully assembled and ready for
- installation. (CONSULT FOR OTHER MEASUREMENTS)
- 60×30 steel guides
- Chain drive
KITS RECOMMENDED
LOCK KIT:
– LOCK KIT: 1 BAS MEC CC + CHOSEN GUIDE (2 or 3 mtrs.) + 1 BAS MEC CC BOARD + 1 TE2 + 2 CF 10 E or 2 CF-EVE.
ACCESSORIES:
TRAFFIC LIGHT SEM 1-2, FLASHING LAMP LO1E 220, REMOTE CONTROL TE2, TE3, TE4, GO2, PHOTOCELLS CF 10 E, CF 10.
