Comodin Genio
Up-and-over doors systems Comodin Genio
Description
CONTINUOUS INTENSIVE USE

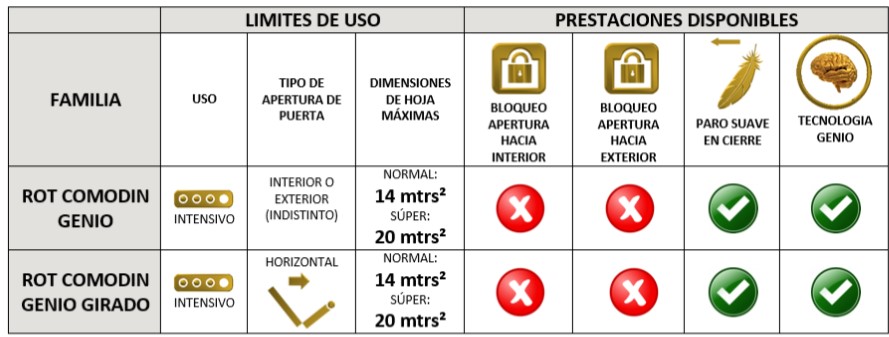

COMODIN GENIO: 24V Hydraulic Equipment. Counterweighted tilt doors one or two leaves up to 14 m².
ROT COMODIN S (SUPER) GENIO: 24V Hydraulic Equipment. Counterweighted tilt doors one or two leaves up to 20 m².
- No lock
- Complies with UNE-13.241-1-2004 standard.
- Anti-crushing and door reversal.
- Designed to connect our unlocking sets CD, CD NEW, or CDB.
- Suitable for high-traffic doors.
- With smooth closing and opening.
- Two outputs for hydraulic lock actuation with reverse sequences. (Allows installation on doors with
- exterior or interior opening).
| COMODIN GENIO | COMODIN GENIO | |
| Power Supply | 24V | 24V |
| Power | 168W | 168W |
| Current | 7A | 7A |
| R.P.M | 2200 | 2200 |
| Protection Level | IP-55 | IP-55 |
| Operating Temperature | -20ºC / +80ºC | -20ºC / +80ºC |
| Operating Service | CONTINUOUS INTENSIVE | CONTINUOUS INTENSIVE |
| Flow Rate | 1 ltr/min. | 1 ltr/min. |
| Working Pressure | 0 / 65 bars | 0 / 65 bars |
| Torque | 0 / 550Nm | 0 / 750 Nm |
| Rotation Angle | 210º | 210º |
| Maneuver Time | 22 s | 22 s |
| Damping | Closing and Opening: Adjustable Damping | |
| Weight | 14 Kg | 16 kg |
CONTINUOUS INTENSIVE USE.
- -COMODIN GENIO: Counterweighted swing gates one or two leaves up to 14 m²
- -COMODIN S GENIO: Counterweighted swing gates one or two leaves up to 20 m².
- -WITHOUT LOCK.
- -Crush prevention and door reversal.
- -Suitable for high-traffic gates.
RECOMMENDED KITS
KIT WITH HYDRAULIC LOCK:
– KIT WITH HYDRAULIC LOCK: 1 COMODIN GENIO MODEL TO CHOOSE + HARDWARE TO CHOOSE + 1 CD NEW + 1 CCG + 1 TE2 + 2 CF 10 E or 2 CF‐EVE.
KIT WITH LOCK:
– KIT WITH LOCK: 1 COMODIN GENIO LOCK MODEL TO CHOOSE + HARDWARE TO CHOOSE + 1 CCG + 1 TE2 + 2 CF 10 E or 2 CF‐EVE.
ACCESSORIES:
HARDWARE: H2H C, H2HCS, H2H C AMOR, H2H CS AMOR, HIC, HIC S, HIC AMOR, HIC S AMOR, HEC, HEC S, HECD, HECD S, HEC AMOR, HEC S AMOR.
SEM 1‐2 TRAFFIC LIGHT, LO1E 220 FLASHING LAMP, MAP OIL, TE2, TE3, GO2, TE4 REMOTE CONTROLS, CF 10 E, CF 10 PHOTOCELLS, CB2B LOCK, CDC‐S, CDB, CD AND CD NEW CYLINDERS, BICONO B, TB BICONO NUT, RR STRAIGHT RACKER, CD FCD FLEXIBLE.
