ROTORIN
Side-opening doors system ROTORIN y ROTORIN S
Description

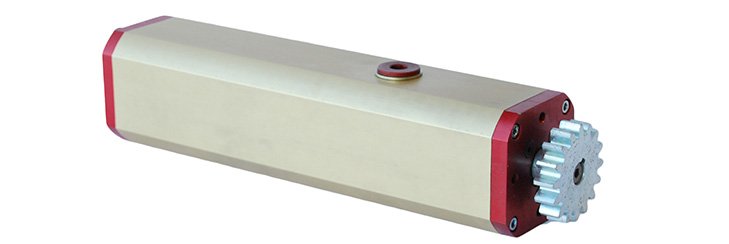

Hydraulic mechanism for sliding doors
HEAVY-DUTY USE

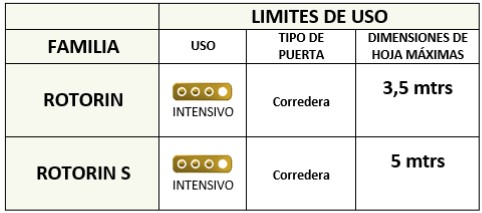

ROTORIN: Reversible hydraulic. Sliding doors ≈ 3.5m. 500Kg. (Linear effort of 0÷38kg.)
ROTORIN SUPER: Reversible hydraulic. Sliding doors ≈ 5m. 700Kg. (Linear effort of 0÷45kg).
- Hermetic hydraulic circuit.
- No need for purging.
- No risk of leaks.
- Hydraulic mechanism without end switches.
- Self-unlocking (electro-lock required).
- Front fixation. Allows vertical or horizontal mounting.
- Mechanism and rack or chain better protected from dust, splashes, and humidity.
- The automatic unlocking allows dispensing with the pedestrian door.
- In case of electrical failure, it is possible to manually operate with the key, from the outside or inside with electro-lock.
| ROTORIN | ROTORIN S | |
| Power Supply | 230V, 50Hz / 120V, 60Hz | 230V, 50Hz / 120V, 60Hz |
| Power | 276W | 276W |
| Current | 1.2A | 1.2A |
| Capacitor | 14μƒ / 250v | 14μƒ / 250v |
| Protection Level | IP 55 | IP 55 |
| Operating Temperature | -20ºC / +80ºC | -20ºC / +80ºC |
| Working Pressure | 0÷40 IBARS | 0÷60 IBARS |
| No-load RPM | ≈35 | ≈40 |
| Adjustable Torque | 0÷412m/kg | 0÷536m/kg |
| M4 Pinion | 36 | 36 |
Hydraulic mechanism for sliding doors
HEAVY DUTY USE
- Hermetic hydraulic circuit.
- No need for purging.
- No risk of leaks.
- …
RECOMMENDED KITS
STANDARD KIT:
‐ STANDARD KIT: 1 ROTORIN MODEL TO CHOOSE + 4 MTRS CR 260 + 1 CRFEM + 1 TR255 MINI + 1 EGR 80 + 1 CE + 1 TE2 + 2 CF 10 E or 2 CF‐EVE.
ACCESSORIES:
MAP OIL Oil, PC 3/8”, PCR, PCRG, CR P 700, CR P 300, C 3/8”, SPARE PARTS, SEM 1‐2 TRAFFIC LIGHT, FLASHING LAMP LO1E 220, REMOTE CONTROL TE2, TE3, TE4, GO2, PHOTOCELLS CF 10 E, CF 10.
