B350
Swing doors system B350
Description
RESIDENTIAL USE.
- Recessed mechanism with oil bath for doors up to 3 meters and 3.5 meters. With 180º opening for leaves with a length not exceeding 2 meters and a total concealment system that does not alter the aesthetics of the gate.
– Irreversible and silent. Ensures leaf locking. No electro-lock required.
– The oil bath prevents water leakage or condensation formation.
– Manual maneuver unlocking using supplied special key.
– Mechanical stop required in opening and closing. (FC NOT INCLUDED).
– Total concealment system that does not alter the aesthetics of the gate.
AVAILABLE: 350 FC end-of-travel kit, quick to install and adjust.
|

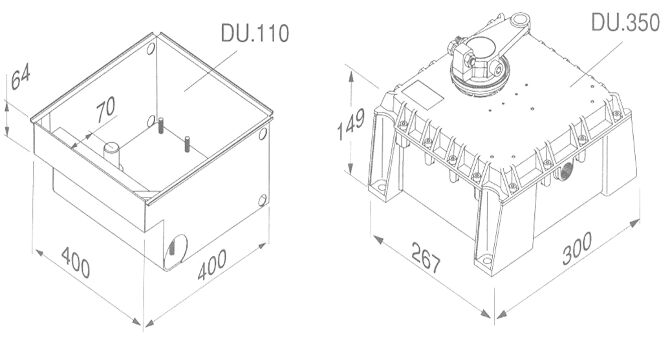

BOX B 350 |
 |
| REVERSIBILITY CONFIGURATIONS TO CHOOSE | |||||||||
| Motor | Usage | Blade length | Blade weight | Voltage |
Reversible |
Irreversible (optional) |
|||
| Electric lock | Hydraulic lock | Extended shaft lock | Retracted shaft lock | Lock in both directions | |||||
| B350N | Residential | 3.5m | 230V | – | – | – | |||
| B350NV | Residential | 3m | 230V | – | – | ||||
*You must choose between the electric lock option or the hydraulic lock option. If desired, you can select your equipment with one of the available irreversibility options.
| B350N | B350NV | |
| Voltage | 230V, 50Hz/120V, 60Hz | 230V, 50Hz/120V, 60Hz |
| Power | 310W | 310W |
| Current | 1.4A | 1.4A |
| Torque | 450Nm | 270Nm |
| Motor insulation class | F | F |
| Noise | <70dB | <70dB |
| 90° maneuver time | 18s | 11s |
| Max. door weight | 500 Kg | 500 Kg |
| Max. door length | 3.5m | 3m |
| Work intermittence | 40% | 40% |
| Lubrication | Blasia 32 water | Blasia 32 water |
| Capacitor | 12.5uf | 12.5uf |
| IP Index | IP67 | IP67 |
| Weight | 20Kg | 20Kg |
RESIDENTIAL USE.
- Flush-mounted mechanism with oil bath for doors up to 3 meters and 3.5 meters. With 180º opening for leaves with a length not exceeding 2 meters and a total concealment system that does not alter the aesthetics of the gate.
RECOMMENDED KITS
LOCKING KITS:
NOTE: As this equipment has a lock and its use is limited to doors less than 3-3.3 meters, the lock will be omitted (in single leaf installations) and the lock and the latch will be omitted (in double leaf installations). However, they can be installed.
If the door does not have mechanical stops for opening and closing, a 350FC Limit Switch Kit must be installed, which will be available only on request.
ACCESSORIES:
B350 BOX, SEM 1-2 TRAFFIC LIGHT, FLASHING LAMP
