Bat Rueda
Swing doors system Bat Rueda
Description
RESIDENTIAL USE.
- Electromechanical mechanisms to automate swing gates
- Valid for gates up to 150 Kg.
- Allows operation of swing gates with 1 or 2 leaves.
– BAT WHEEL RE Mechanism for swing gates with reversible floating wheel. (Specify R or L)
– BAT WHEEL AU Mechanism for swing gates with self-locking floating wheel (Specify R or L).
The BAT model can be supplied in direct current. To achieve maximum reliability with this mechanism, we recommend using our control panels.

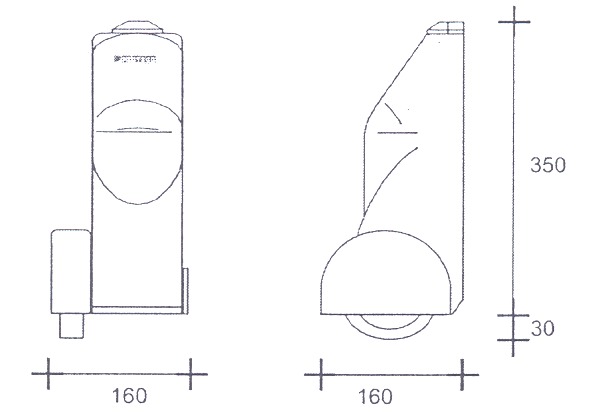

| REVERSIBILITY CONFIGURATIONS TO CHOOSE | |||||||||
| Motor | Use | Leaf length | Leaf weight | Voltage |
Reversible |
Irreversible (optional) |
|||
| electric lock | hydraulic lock | extended rod lock | retracted rod lock | lock in both directions | |||||
| BAT Wheel RE | Residential | 230V | – | – | – | ||||
| BAT Wheel AU | Residential | 230V | – | – | |||||
| BAT Wheel 24V | Residential | 24V | |||||||
\*You must choose between the electric lock or hydraulic lock option. If desired, you can choose your equipment with one of the available irreversibility options.
| 230V | 12V | ||
| B | R | ||
| Power supply | 230V, 50Hz / 120V, 60Hz | 230V, 50Hz / 120V, 60Hz | 12V dc |
| Line absorption power | 1.2 – 1.7A | 1.2 – 1.7A | 0.7 – 9.5A |
| Power | 280W | 250W | 40W |
| Capacitor | 8 μƒ | 8 μƒ | — |
| Thermal protection | 150º | 150º | — |
| IP protection degree | IP 54 | IP 54 | IP 54 |
| Motor rotation | 1400g/m | 1400g/m | 1500g/m |
| Service temperature | – 35º – + 55º | – 35º – + 55º | – 35º – + 55º |
| Opening time | 20m | 19m | 21m |
| Max. leaf weight | 150kg | 150kg | 100kg |
| Max. opening angle | NO LIMIT | NO LIMIT | NO LIMIT |
| Max. inclination | 12º | 12º | 12º |
| Max. unevenness | 200 mm | 200 mm | 200 mm |
| Duty cycle | 30 % | 30 % | 80% |
RESIDENTIAL USE.
- Electromechanical mechanisms to automate swing gates
- Valid for doors up to 150 Kg.
- Allows the operation of 1 or 2 leaf swing gates.
RECOMMENDED KITS
220V REVERSIBLE KITS:
220V LOCKING KITS:
NOTE: For doors less than 2.5 meters, the lock can be omitted (in single leaf installations) and the lock can be omitted (in double leaf installations) if the chosen equipment model has a door closed lock.
12V REVERSIBLE KITS:
12V LOCKING KITS:
ACCESSORIES:
SEM 1-2 TRAFFIC LIGHT, LO1E 220 FLASHING LAMP, TE2, TE3, TE4, GO2 CONTROLS, CF 10 E, CF 10 PHOTOCELLS, CB2B LOCK.
