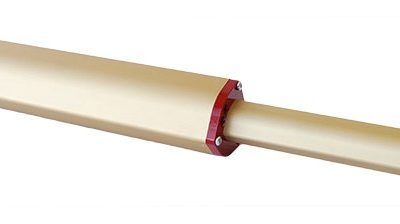

Swing doors system BAT AU 400 / BAT RE 400
Description
RESIDENTIAL USE.
- – Electromechanical mechanism to automate swing gates
- – Suitable for gates up to 3 meters and 350 Kg
- – For residential use
- – RE- Reversible AU – Irreversible
| REVERSIBILITY CONFIGURATIONS TO CHOOSE | |||||||||||
| Motor | Use | Leaf length | Leaf weight | Voltage |
Reversible |
Irreversible (optional) |
Stroke | ||||
| electric lock | hydraulic lock | extended rod lock | retracted rod lock | lock in both directions | 265 | 400 | |||||
| BAT AU | Residential | 230V | – | – | – | • | |||||
| BAT RE | Residential | 230V | – | – | • | ||||||
\*You must choose between the electric lock or hydraulic lock option. If desired, you can choose your equipment with one of the available irreversibility options.
|
BAT AU 400 / BAT RE 400 FOR DOORS UP TO 3.5M AND 250KG (residential use) |
|
| Power supply | 230V/120V 50/60 Hz |
| Power | 200W |
| Absorbed current | 1.2A / 1.7A |
| Thermal protection | 135º C |
| Working temperature | – 35º C ÷ + 80º C |
| Operation | Electromechanical actuator |
| Structure | Varnished aluminum |
| Max. Leaf dimensions | 3000mm |
| Max. Leaf weight | 350 Kg |

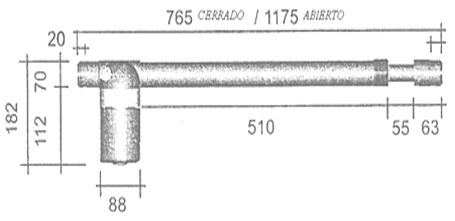

| Stroke | 400mm |
| Travel time | 21 Sec |
| Piston speed | 1400g/min |
| Reduction ratio | 1:27 |
| Function intermittency | 50% |
| Thrust | 3000N |
| Capacitor | 10mf |
| Weight | 7.2Kg |
RESIDENTIAL USE.
- – Electromechanical mechanism to automate swing gates
- – Valid for doors up to 3M and 350 Kg
- – For residential use
- – RE- Reversible AU – Irreversible
RECOMMENDED KITS.
REVERSIBLE KITS:
SINGLE LEAF REVERSIBLE KIT: 1 BAT RE 400 (SUPPORTS INCLUDED) + 1 CRFEM + 1 TR255 MINI + 1 TE2 + 1 ECI + 2 CF 10 E or 2 CF-EVE.
DOUBLE LEAF REVERSIBLE KIT: 2 BAT RE 400 (SUPPORTS INCLUDED) + 1 C2M + 1 TR255 MINI + 1 TE2 + 1 ECI + 1 EPDI + 2 CF 10 E or 2 CF-EVE.
DOUBLE LOCKING KITS:
SINGLE LEAF DOUBLE LOCKING KIT: 1 BAT AU 400 (SUPPORTS INCLUDED) + 1 CRF MINI +1 TR255 MINI+ 1 TE2 + ECI + 2 CF 10 E or 2 CF-EVE.
DOUBLE LEAF DOUBLE LOCKING KIT: 2 BAT AU 400 (SUPPORTS INCLUDED) + 1 C2M + 1 TR255 MINI + 1 TE2 + ECI + EPDI + 2 CF 10 E or 2 CF-EVE.
NOTE: For doors less than 2.5 meters, the lock can be omitted (in single leaf installations) and the lock and the latch can be omitted (in double leaf installations) if the chosen equipment model has a door closed lock.
ACCESSORIES:
SEM 1-2 TRAFFIC LIGHT, LO1E 220 FLASHING LAMP, TE2, TE3, TE4, GO2 CONTROLS, CF 10 E, CF 10 PHOTOCELLS, CB2B LOCK.
