Swing doors system TOR
Description
Features
Extra Features
Usage Level Intensive
Description
- Hermetic hydraulic circuit. No purging required.
- No risk of leaks.
- TOR 4: Leaf length up to ~5.5 meters, 1000Kg. (See “MODELS” section)
- TOR 5: Leaf length up to ~7 meters, 1500Kg. (See “MODELS” section)
- – Hydraulic automation for SWING GATES. Allows the operation of single or double leaf swing gates.
– With automatic unlocking.
– Adapts to all gate models, whether already installed or newly installed.
– Extremely quiet operation.
– Features adjustable hydraulic SOFT STOP (in closing and opening) to prevent gate slamming.
– Offers adjustment for wind retention, SEMI-BLOCK (in closing and opening).
– Allows for the elimination of the pedestrian door.
– In case of power failure, manual operation is possible by activating the electric lock with its key, from the inside or outside.
– The system allows for the regulation of retention by effectively controlling the acceleration of the leaf due to air currents.
– Includes support brackets and axis cover.
* Lock available in only one direction. Choose the type of lock desired. (When the shaft is extended (outside the equipment) or when the shaft is retracted (inside the equipment)).

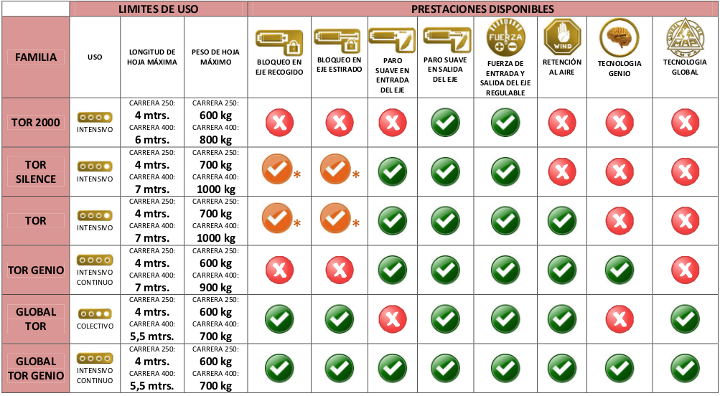

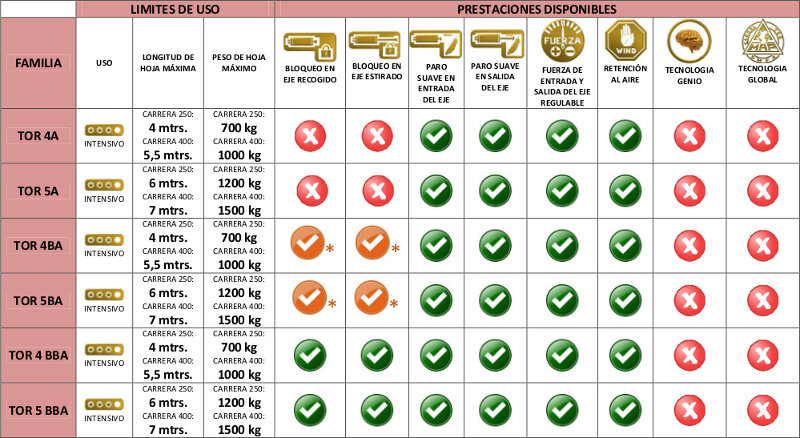

Hydraulic Output. This option is available on all models. Name of the equipment ending in “C”. The letter C is the nomenclature used to identify that the equipment is equipped with a hydraulic output. MODELS: TOR4CA, TOR 5 CA, TOR 4 CBA, TOR 5 CBA, TOR 4 CBBA, TOR 5 CBBA.
| TOR 4 | TOR 5 | |
| Voltage | 230, 50Hz/120, 60Hz | 230, 50Hz/120, 60Hz |
| Power | 276 W | 276 W |
| Current | 1.2 A | 1.2 A |
| R.P.M | 1450 | 1450 |
| Capacitor | 14 μf / 250 V | 14 μf / 250 V |
| Protection Level | IP-55 | IP-55 |
| Thermal Protection | 100°C | 100°C |
| Operating Service | Intensive | Intensive |
| Pump Flow | 0.7 ltr/min | 1 ltr/min |
| Working Pressure | 0/60 bars | 0/55 bars |
| Linear Opening Force | 5420 N | 6890 N |
| Linear Closing Force | 7540 N | 8540 N |
| Stroke | 250 mm / 400 mm | 250 mm / 400 mm |
| Damping | Opening and closing (adjustable in speed and travel) | Opening and closing (adjustable in speed and travel) |
| Closing | With lock / Hydraulic lock | With lock / Hydraulic lock |
| Opening Speed | 18 s (16 mm of damping) | 18 s (16 mm of damping) |
| Closing Speed | 22 s (17 mm of damping) | 22 s (17 mm of damping) |
| Weight | 12Kg | 12Kg |
INDUSTRIAL USE
- Hermetic hydraulic circuit. Purgation not necessary.
- No risk of leaks.
- TOR 4: Blade length up to ~5.5 meters, 1000Kg. (Refer to the “MODELS” section)
- TOR 5: Blade length up to ~7 meters, 1500Kg. (Refer to the “MODELS” section)
RECOMMENDED KITS
STANDARD KITS
STANDARD SINGLE LEAF KIT
STANDARD DOUBLE LEAF KIT
KITS WITH HYDRAULIC LOCK
HYDRAULIC EXIT SINGLE LEAF KIT
NOTE: For doors under 2.5 meters, it is possible to dispense with the lock (in single-leaf installations) and the lock and latch (in two-leaf installations) if the equipment is set up with the lock in the closed door position.
DOUBLE LEAF HYDRAULIC OUTPUT KIT
NOTE: For doors under 2.5 meters, it is possible to dispense with the lock (in single-leaf installations) and the lock and latch (in two-leaf installations) if the equipment is set up with the lock in the closed door position.
Accessories
