Tor 2000

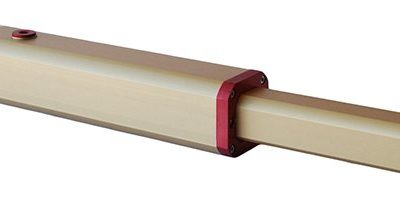

Swing doors system Tor 2000
Description
Features
Usage Level Intensive
Description
- Hermetic hydraulic circuit. No purging required.
- No risk of leaks.
- TOR 2000: Leaf length, 4 meters, 600Kg
- TOR 2000 C: With output for hydraulic lock at the bottom of the front head (consult)
- CARRERA DE 400: Leaf length ~6 meters, 800Kg.
– Hydraulic automation for SWING GATES. Allows the operation of single or double leaf swing gates.
– Automatic unlocking allows manual operation of the gate by simply activating the electric lock with its key.
– Works by timing.
– With auto-unlock and adjustable effort. (Electric lock required).
– WITH ADJUSTABLE SOFT STOP ON CLOSING to prevent slamming. WITH AIR RETENTION.
TOR 2000 | |
Tensión | 230, 50Hz /120, 60Hz |
Potencia | 276 W |
Intensidad | 1,2 A |
R.P.M | 1450 |
Condensador | 14 μf |
Nivel de protección | IP-55 |
Protección térmica | 100ºC |
Temperatura función | -20ºC a +80ºC |
Servicio de funcionamiento | Intensivo |
Caudal bomba | 0.7 ltr/min |
Presión de trabajo | 0/60 bares |
Fuerza lineal abertura | 5420N |
Fuerza lineal cierre | 7540N |
Carrera | 250 mm / 400 mm |
Amortiguación | Cierre (regulable en velocidad y recorrido) |
Cierre | (Sin Bloqueo) Electro-cerradura / Cerradura hidráulica |
Velocidad Apertura | 18 s ( 16 mm de amortiguación) |
Velocidad Cierre | 22 s ( 17 mm de amortiguación) |
Peso | 12Kg |
USO INTENSIVO.
- Circuito hidráulico hermético. No es necesaria su purga.
- Sin riesgo de fugas.
- TOR 2000: longitud de hoja, 4mts 600Kg
- TOR 2000 C: Con salida para cerradura hidráulica por la parte inferior de la cabeza delantera (consultar)
- CARRERA DE 400 :longitud de hoja ~ 6mts., 800Kg.
KITS RECOMENDADOS
KITS STANDARD
KIT STANDARD UNA HOJA
KIT STANDARD DOBLE HOJA
KITS CON CERRADURA HIDRÁULICA
KIT SALIDA HIDRÁULICA UNA HOJA
1 TOR 2000 C (JS y RT incluidos)
NOTA: Para puertas inferiores a 2,5 mtrs. se puede llegar a prescindir de la cerradura (en montajes de 1 hoja) y de la cerradura y del enclave (en montajes de 2 hojas) si se configura el equipo con el bloqueo en puerta cerrada.
KIT SALIDA HIDRÁULICA DOBLE HOJA
2 TOR 2000 C (JS y RT incluidos)
NOTA: Para puertas inferiores a 2,5 mtrs. se puede llegar a prescindir de la cerradura (en montajes de 1 hoja) y de la cerradura y del enclave (en montajes de 2 hojas) si se configura el equipo con el bloqueo en puerta cerrada.
